    MNA Hammer Screw

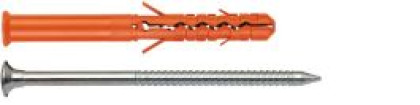

    MNA Hammer Screw with countersunk collar

    Types of MNA Hammer Screw

    Video Of MNA Hammer Screw

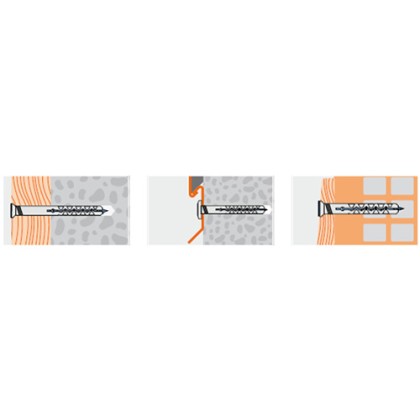

    • wooden constructions, skirtings, profiles, frames
    • Quick and simple installation
    • Available with 3 different styles of head
    • The long expansion zone guarantees optimum stability

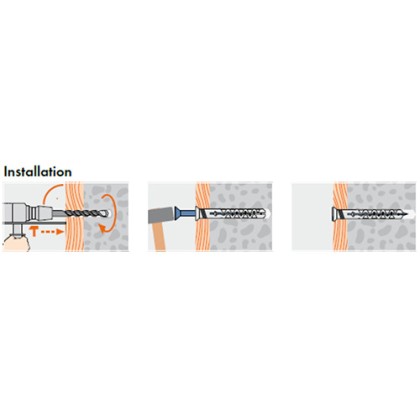

    • Easy and reliable installation
    • The buttress thread allows adjustment or dismantling
    • Plug made from high-quality polyamide PA6
    • Through fixing
    • Indoor (zinc plated) and outdoor (stainless steel) applications

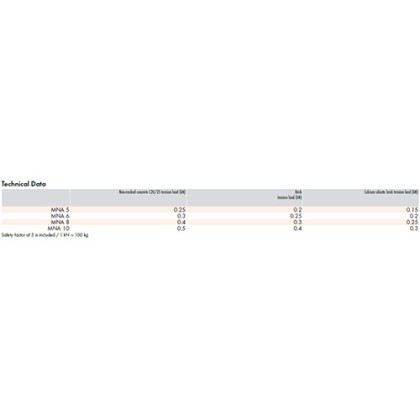

      Non-cracked concrete C20/25 tension load (kN) Brick
    tension load (kN)    		 Calcium silicate brick tension load (kN)
    MNA 5 0.25 0.2 0.15
    MNA 6 0.3 0.25 0.2
    MNA 10 0.4 0.3 0.25
    MNA 10 0.5 0.4 0.3

    MNA-S Hammer Screw with countersunk collar

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Collar Ø mm
    dk
    Min Max
    Usable length mm
    tfix
    Min Max
    Drive
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    1122502S
              5
              25
              7
              2
    PZ2
              100 [11]
              2400 [32]
    144000
    1122503S
              5
              30
              7
              5
    PZ2
              100 [11]
              2400 [32]
    144000
    1122504S
              5
              40
              7
              15
    PZ2
              100 [11]
              2400 [32]
    144000
    1122505S
              5
              50
              7
              25
    PZ2
              100 [11]
              2400 [32]
    144000
    1122603S
              6
              35
              9
              5
    PZ2
              100 [21]
              1800 [32]
    108000
    1122604S
              6
              40
              9
              10
    PZ2
              100 [21]
              1800 [32]
    108000
    1122605S
              6
              50
              9
              20
    PZ2
              100 [21]
              1800 [32]
    108000
    1122606S
              6
              60
              9
              30
    PZ2
              100 [31]
              1200 [32]
    72000
    1122607S
              6
              70
              9
              40
    PZ2
              100 [31]
              1200 [32]
    72000
    1122608S
              6
              80
              9
              50
    PZ2
              100 [31]
              1200 [32]
    72000
    1122805S
              8
              50
              12
              10
    PZ3
              100 [41]
              900 [32]
    54000
    1122806S
              8
              60
              12
              20
    PZ3
              100 [41]
              900 [32]
    54000
    1122808S
              8
              80
              12
              40
    PZ3
              100 [51]
              600 [32]
    36000
    1122810S
              8
              100
              12
              60
    PZ3
              100 [51]
              600 [32]
    36000
    1122812S
              8
              120
              12
              80
    PZ3
              100 [51]
              600 [32]
    36000
    1122814S
              8
              140
              12
              100
    PZ3
              100 [51]
              600 [32]
    36000

    MNA-S Hammer Screw with countersunk collar, not pre-assembled

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Collar Ø mm
    dk
    Min Max
    Usable length mm
    tfix
    Min Max
    Drive
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    11229081S
              10
              80
              13
              30
    PZ3
              50 [31]
              600 [32]
    36000
    11229101S
              10
              100
              13
              50
    PZ3
              50 [51]
              300 [32]
    18000
    11229121S
              10
              120
              13
              70
    PZ3
              50 [51]
              300 [32]
    18000
    11229141S
              10
              140
              13
              90
    PZ3
              50 [51]
              300 [32]
    18000
    11229161S
              10
              160
              13
              110
    PZ3
              50 [51]
              300 [32]
    18000

    MNA-Z Hammer Screw with cylindrical collar

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Collar Ø mm
    dk
    Min Max
    Usable length mm
    tfix
    Min Max
    Drive
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    1122502Z
              5
              25
              8
              2
    PZ2
              100 [11]
              2400 [32]
    144000
    1122503Z
              5
              30
              8
              5
    PZ2
              100 [11]
              2400 [32]
    144000
    1122504Z
              5
              40
              8
              15
    PZ2
              100 [11]
              2400 [32]
    144000
    1122505Z
              5
              50
              8
              25
    PZ2
              100 [11]
              2400 [32]
    144000
    1122603Z
              6
              35
              12
              5
    PZ2
              100 [21]
              1800 [32]
    108000
    1122604Z
              6
              40
              12
              10
    PZ2
              100 [21]
              1800 [32]
    108000
    1122605Z
              6
              50
              12
              20
    PZ2
              100 [21]
              1800 [32]
    108000
    1122606Z
              6
              60
              12
              30
    PZ2
              100 [31]
              1200 [32]
    72000
    1122607Z
              6
              70
              12
              40
    PZ2
              100 [31]
              1200 [32]
    72000
    1122608Z
              6
              80
              12
              50
    PZ2
              100 [31]
              1200 [32]
    72000
    1122805Z
              8
              50
              15
              10
    PZ3
              100 [41]
              900 [32]
    54000
    1122806Z
              8
              60
              15
              20
    PZ3
              100 [41]
              900 [32]
    54000
    1122808Z
              8
              80
              15
              40
    PZ3
              100 [51]
              600 [32]
    36000
    1122810Z
              8
              100
              15
              60
    PZ3
              100 [51]
              600 [32]
    36000
    1122812Z
              8
              120
              15
              80
    PZ3
              100 [51]
              600 [32]
    36000
    1122814Z
              8
              140
              15
              100
    PZ3
              100 [51]
              600 [32]
    36000

    MNAr-S Hammer Screw with countersunk collar

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Collar Ø mm
    dk
    Min Max
    Usable length mm
    tfix
    Min Max
    Drive
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    1125503S
              5
              30
              7
              5
    PZ2
              100 [11]
              2400 [32]
    57600
    1125505S
              5
              50
              7
              25
    PZ2
              100 [11]
              2400 [32]
    57600
    1125603S
              6
              35
              9
              5
    PZ2
              100 [21]
              1800 [32]
    43200
    1125604S
              6
              40
              9
              10
    PZ2
              100 [21]
              1800 [32]
    43200
    1125605S
              6
              50
              9
              20
    PZ2
              100 [21]
              1800 [32]
    43200
    1125606S
              6
              60
              9
              30
    PZ2
              100 [31]
              1200 [32]
    28800
    1125607S
              6
              70
              9
              40
    PZ2
              100 [31]
              1200 [32]
    28800
    1125805S
              8
              50
              12
              10
    PZ3
              100 [41]
              900 [32]
    21600
    1125806S
              8
              60
              12
              20
    PZ3
              100 [41]
              900 [32]
    21600
    1125808S
              8
              80
              12
              40
    PZ3
              100 [51]
              600 [32]
    14400
    1125810S
              8
              100
              12
              60
    PZ3
              100 [51]
              600 [32]
    14400
    1125812S
              8
              120
              12
              80
    PZ3
              100 [51]
              600 [32]
    14400
    1125814S
              8
              140
              12
              100
    PZ3
              100 [51]
              600 [32]
    14400
