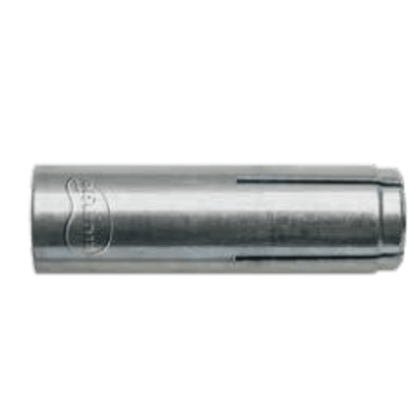

    MEA Drop in Anchor (Bullet Fastener)

    MEA Drop in Anchor

    Downloads

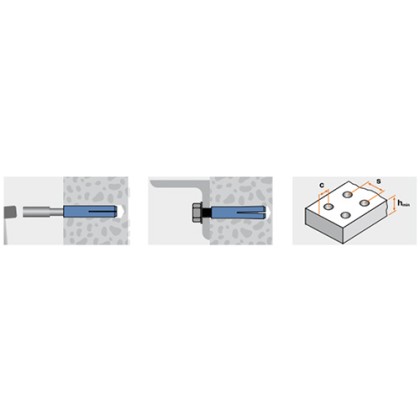

    Types of MEA Drop in Anchor (Bullet Fastener)

    • pipes, ventilation systems, cable trays
    • European Technical Assessment Option 7 for non-cracked concrete
    • ETAG 001 - 06 - Approved for multiple use in cracked and noncracked concrete for non-structural applications
    • Resistance under fire exposure F120 is part of the assessment
    • Use in reinforced or non reinforced concrete
    • Suitable for metric screws and rods
    • Quick and simple installation
    • Low edge and anchor distances
    • Short drilling depth
    • Zinc plated > 5µm
    • Stainless steel A4/316

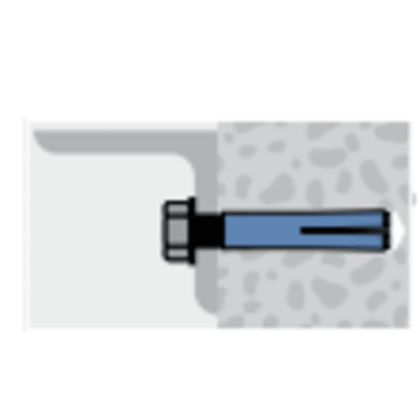

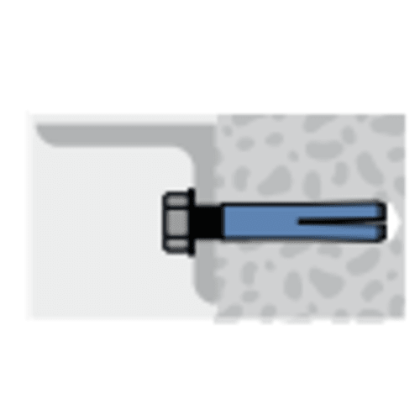

    • Pre installation

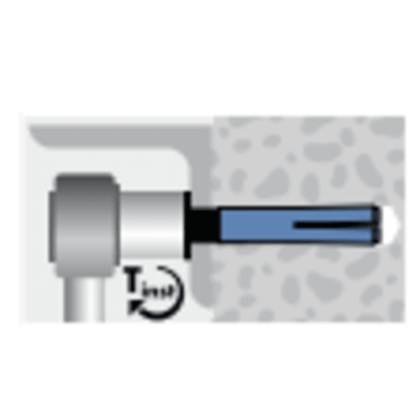

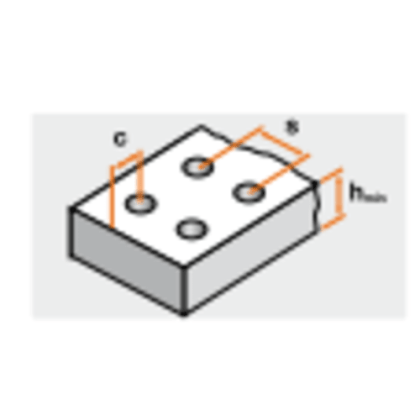

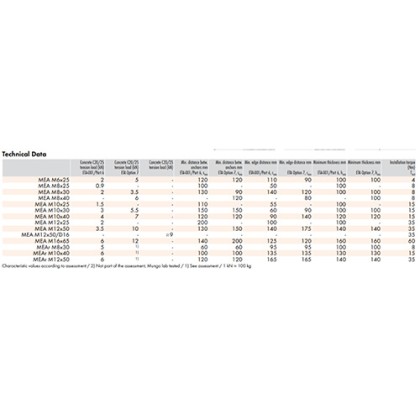

      Concrete C20/25 tension load (kN) Concrete C20/25 tension load (kN) Concrete C20/25 tension load (kN) Min. distance betw. anchors mm Min. distance betw. anchors mm Min. edge distance mm Min. edge distance mm Minimum thickness mm Minimum thickness mm Installation torque (Nm)
    ETA-001/Part 6 ETA Option 7   ETA-001/Part 6, smin ETA Option 7, smin ETA-001/Part 6, cmin ETA Option 7, cmin ETA-001/Part 6, hmin ETA Option 7, hmin Tinst
    MEA M6x25 2 5 - 120 120 110 90 100 100 4
    MEA M8x25 0.9 - - 100 - 50 - 100 - 8
    MEA M8x30 2 3.5 - 130 90 140 120 100 100 8
    MEA M8x40 - 6 - - 120 - 80 - 100 8
    MEA M10x25 1.5 - - 110 - 55 - 100 - 15
    MEA M10x30 3 5.5 - 150 150 60 90 100 100 15
    MEA M10x40 4 7 - 120 120 90 140 120 120 15
    MEA M12x25 2 - - 200 - 100 - 100 - 35
    MEA M12x50 3.5 10 - 130 150 140 175 140 140 35
    MEA M12x50/D16 - - 2) 9 - - - - - - 35
    MEA M16x65 6 12 - 140 200 125 120 160 160 60
    MEAr M8x30 5 1) - 60 60 95 95 100 100 8
    MEAr M10x40 6 1) - 100 100 135 135 130 130 15
    MEAr M12x50 6 1) - 120 120 165 165 140 140 35

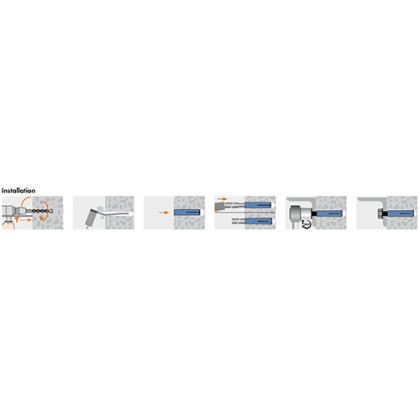

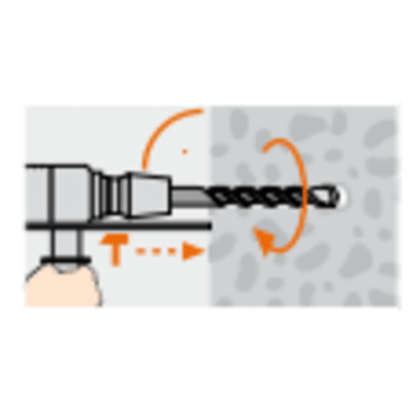

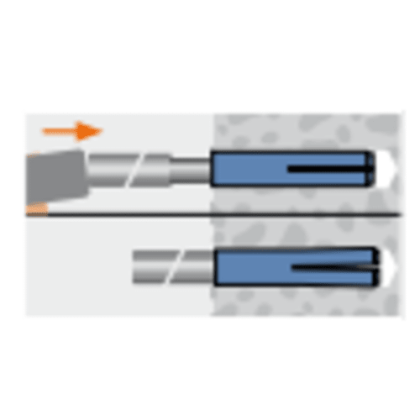

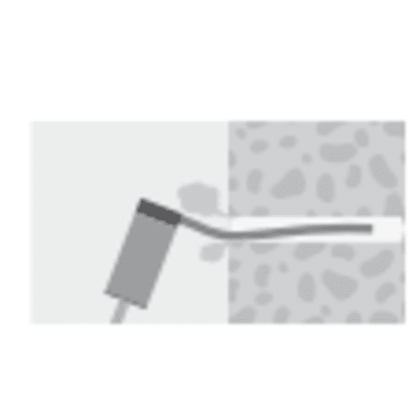

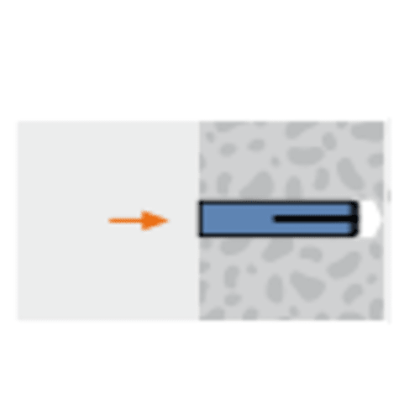

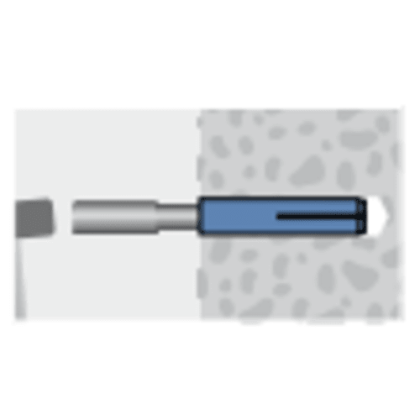

    Installation Sequence

    Article code
    Internal thread
    d
    Min Max
    Min. internal thread length mm
    Lthmin
    Min Max
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Drilling depth mm
    h0
    Min Max
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    1740625
              M6
              8
              8
              25
              100 [11]
              1200 [22]
    72000
    1740825
              M8
              10
              10
              25
              100 [11]
              1200 [22]
    72000
    1740830
              M8
              10
              10
              30
              100 [11]
              1200 [22]
    72000
    1740840
              M8
              12
              10
              40
              100 [11]
              1200 [22]
    72000
    1741025
              M10
              12
              12
              25
              100 [11]
              1200 [22]
    72000
    1741030
              M10
              12
              12
              30
              100 [11]
              1200 [22]
    72000
    1741040
              M10
              15
              12
              40
              50 [11]
              600 [22]
    36000
    1741225
              M12
              11
              15
              25
              50 [11]
              600 [22]
    36000
    1741250
              M12
              16
              15
              50
              50 [21]
              450 [22]
    27000
    1741251
              M12
              16
              16
              50
              50 [21]
              450 [22]
    27000
    1741665
              M16
              22
              20
              65
              25 [21]
              225 [22]
    13500
