    m1r powerGrip ThroughBolt

    m1r powerGrip ThroughBolt

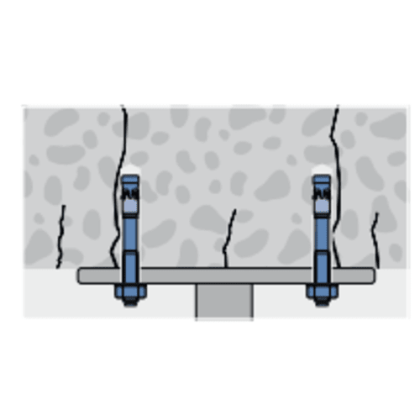

    Torque-controlled expansion anchor made of stainless steel A4/316 for use in cracked and non-cracked concrete under static, quasi-static or seismic action

    Downloads

    Types of m1r powerGrip ThroughBolt

    • railings, steel constructions, profiles, machines, substructures, guard rails



    • The powerGrip Throughbolt for highest performance in cracked concrete.
    • European Technical Assessment Option 1 for cracked and noncracked concrete.
    • Resistance under fire exposure F120 is part of the assessment.
    • The anchor may also be used under seismic influence for performance category C1.
    • Reduced setting depths for a faster installation.
    • Innovative clip design; higher loads and best expansion.
    • With a big DIN 9021 washer for fixings with slotted holes and for wooden structures.
    • Setting depth mark for correct installation.
    • Small edge and spacing distances.
    • Simple setting process due to low resistance to impacts.
    • Fast achievement of installation torque.
    • Stainless steel A4/316.
    • Pre installation or through fixing.
    • Indoor and outdoor applications.

      Non-cracked concrete C20/25 tension load (kN) Cracked concrete C20/25 tension load (kN) Concrete C20/25
    shear load (kN)    		 Bending moment (Nm) Min. distance betw.
    anchors/at edge
    distance mm    		 Min. edge distance/
    at distance betw.
    anchors mm    		 Minimum thickness of
    concrete member mm    		 Installation torque (Nm) Wrench size
    smin/c cmin/s hmin Tinst SW
    M8  5.7 1.9 4.9 16 50/50 50/50 100 20 13
    M10 9.5 4.3 7.8 32 80/65 65/80 120 45 17
    M12 11.4 7.1 11.3 55 100/60 60/100 140 60 19
    M16 12.4 11.4 21.1 130 120/70 70/120 160 80 24
    • Drilling the hole

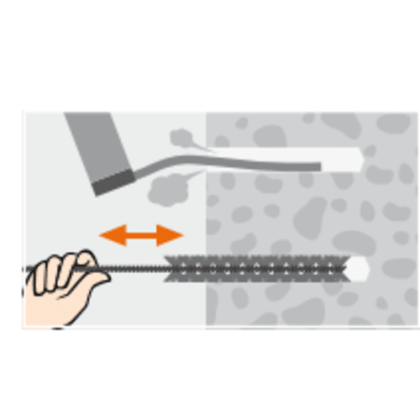

    • Cleaning the hole
    • Mounting the fastener and attachment
    • Tightening fastener with torque wrench with predetermined Tinst
    • Completed installation

    Installation Sequence

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Drilling depth / reduced setting depth mm
    h0 / h0.red
    Min Max
    Usable length / reduced setting depth mm
    tfix / tfix.red
    Min Max
    Effective anchorage depth / reduced setting depth mm
    hef / hef.red
    Min Max
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    3900807
              8
              70
              65
              5
              48
              100 [41]
              300 [12]
    18000
    3900808
              8
              80
              65
              10
              48
              100 [41]
              300 [12]
    18000
    3900809
              8
              95
              65
              25
              48
              100 [51]
              300 [22]
    18000
    3900811
              8
              115
              65
              45
              48
              100 [51]
              300 [22]
    18000
    3900816
              8
              165
              65
              95
              48
              50 [51]
              150 [22]
    9000
    3901009
              10
              95
              80/60
              15/35
              60/40
              100 [51]
              300 [22]
    18000
    3901011
              10
              110
              80/60
              30/50
              60/40
              50 [51]
              150 [22]
    9000
    3901012
              10
              125
              80/60
              45/65
              60/40
              50 [51]
              150 [22]
    9000
    3901014
              10
              140
              80/60
              60/80
              60/40
              50 [51]
              150 [22]
    9000
    3901016
              10
              160
              80/60
              80/100
              60/40
              50 [51]
              150 [22]
    9000
    3901018
              10
              180
              80/60
              100/120
              60/40
              25 [51]
              75 [22]
    4500
    3901211
              12
              110
              90
              15
              70
              50 [51]
              150 [22]
    9000
    3901212
              12
              125
              90
              30
              70
              50 [51]
              150 [22]
    9000
    3901214
              12
              145
              90
              50
              70
              25 [41]
              75 [12]
    4500
    3901216
              12
              165
              90
              70
              70
              50 [51]
              150 [22]
    9000
    3901218
              12
              185
              90
              90
              70
              50 [51]
              150 [22]
    9000
    3901613
              16
              130
              110
              15
              80
              25 [51]
              75 [22]
    4500
    3901614
              16
              145
              110
              30
              80
              25 [51]
              75 [22]
    4500
    3901618
              16
              180
              110
              60
              80
              25 [51]
              75 [22]
    4500

    m1r-C powerGrip Throughbolt with big washer

    Article code
    Plug and drill Ø mm
    dnom = d0
    Min Max
    Length mm
    L
    Min Max
    Drilling depth / reduced setting depth mm
    h0 / h0.red
    Min Max
    Usable length / reduced setting depth mm
    tfix / tfix.red
    Min Max
    Effective anchorage depth / reduced setting depth mm
    hef / hef.red
    Min Max
    Box content
    [FS]
    Min Max
    Outer carton
    [SK]
    Min Max
    Quantity per pallet
    3910808
              8
              80
              65
              10
              48
              100 [51]
              300 [22]
    18000
