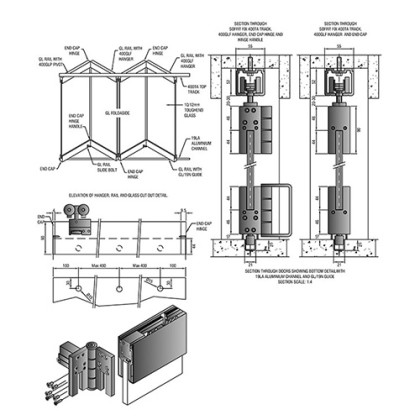

    Foldaside 60GL

    Top hung sliding and folding hardware for frameless interior and exterior folding doors.

    Specifications

    • Max leaf mass: 60kg
    • Max leaf height: 2400mm
    • Max leaf width: 800mm
    • Glass thickness: 10/12mm Toughened glass
    • Max 6 leaves hinged together and to pivot

    The area of a single sliding leaf should be related to all other factors.

    Downloads

    • 400TA Aluminium top track
    • 19A Aluminium or 19B brass guide channel
    • 400GLF Hangers
    • GL/19N Guide
    • 400P Pivot set for pivot doors
    • GL Top and bottom rail with cover plates
    • 5025 Rail lock and euro cylinder
    • 122 Brush welt
    • ECH End cap hinge
    • ECHH End cap hinge handle
    • P10/12 Glass h-type seals
    • GL2 Slide bolt

    NOTE:

    • This system is not waterproof – only weather resistant.
    • Selected fittings available in stainless steel.
    • Various finishes available.
    • Strong aluminium top track
    • Centre and end hung leaves
    • Quality proven hardware
